NO1

Masters 大 师

Introduction 介 绍

世界建筑大师担纲设计

As the master of the world architectural design

×

戴卫. 奇普菲尔德

David Chipperfield

戴卫. 奇普菲尔德(爵士),国际顶级建筑设计大师。以其精确、简约、含蓄、低调的设计闻名于世。
其成名作“伦敦划船和河流博物馆”曾七次获项英国和国际大奖,“柏林博物馆岛”的改建设计,与贝聿铭的卢浮宫整修方案并称全球两大改建经典。

保持英式含蓄的戴卫. 奇普菲尔德不热衷于建立设计上的“焦点”,而喜欢用抽象的形式和素净的色调,与东方的禅宗思想有着奇妙的一致性。因其对建筑所做的贡献,于2004 年被授予英国皇家COB 勋章。


Sir David Chipperfield, world-class architect, is renowned for his meticulous, concise,implicit and low-key designs.
His famous work the River and Rowing Museum in London received 7 prestigious national and international awards. He also led the expansion of the Neues Museum in Berlin, considered to be one of the world’s two large-scale classic redesigns alongside the renovation of the Louvre Museum.
With typical English reserve and modesty, David Chipperfield is not keen on using eye-catching elements in construction. Instead he uses abstract form and plain color to deliver his idea, sharing a wonderful similarity with eastern Zen principles.
For his outstanding contribution to contemporary architecture, Sir David was appointed Commander of the Order of the British Empire (CBE) in 2004 and subsequently knighted in 2010.

Works 作 品

×
代表作:

德国柏林新博物馆;
英国BBC 苏格兰总部;
美国圣路易斯艺术博物馆(Saint Louis Art Museum) 扩建;
纽约Medison Avenue 大街DOLCE & GABBANA 旗舰店;
西班牙安达卢西亚Cantera 文化中心、
意大利米兰Ansaldo 文化城(Ansaldo City Of Cultures) 艺术馆;
日本东京晴空塔
……

Representative works:
1 Marbach Museum of Modern Literature, Berlin, Germany
2 BBC Scotland Headquarters, UK
3 America's Cup Buildong,Valencia,Spain
4 Museum of Modern Literature
5 Dolce & Gabbanna Madison Avenue flagship store, New York, USA
6 Hangzhou Liangzhu Museum,China
……

NO2

Facades 外 墙

Material 材 料

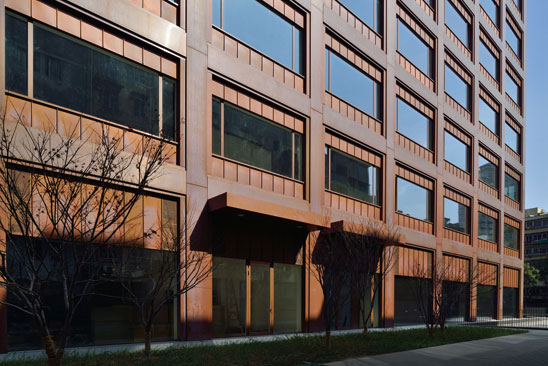

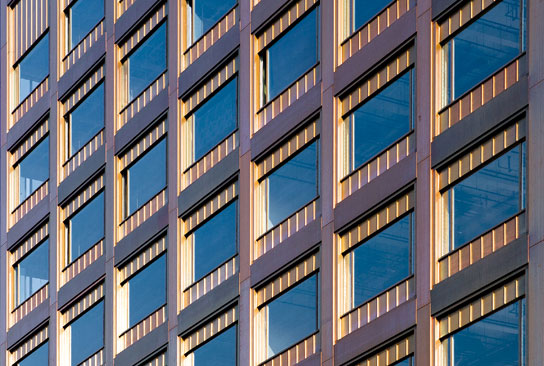

外墙材料

Exterior wall material

×
人应当重拾对材料的敬重。万物皆有其特定的本质,自然界的材料亦都有生命的秉性。在所有细节精雕细刻的基础上,全球罕有的整楼铜板干挂外立面,更使壹向大楼成为一座具有生命的建筑。

每一块铜板皆经专门特制,它将历经时间的淬炼,从初世地的亮泽,至亚光、古铜、棕褐……因阳光与空气的转换产生微妙的变化,直至岁月在其表面积甸下铜元素特有的古翠绿……时空嬗变、生生不息。

People should regain the respect of materials. Everything has its specificnature, nature of the material also has a life of nature. Based on all the detailscarved, global rare whole floor plate dry hanging Wailimian, makes one to thebuilding into a living building.

Each piece of copper are specially made, it will go through training, from thebeginning of the world to shine, and Matt, bronze, brown...... Have a subtlechange as a result of the conversion of sunlight and air, until the years inspecific surface area of copper elements
of malachite green...... Temporal andspatial evolution, life and growth in nature.
铜板自然演变过程
The natural evolution of copper

Crafts 工 艺

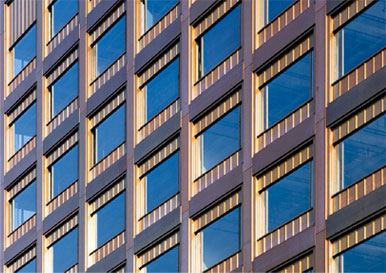

铜板幕墙工艺

Copper plate curtain wall

×
采用开放式紫铜板幕墙系统,并以严苛到极致的施工工艺控制,保证建
筑气质的完美呈现。开放式铜板幕墙系统独有的呼吸层及独特设计, 最
大限度地保护内部材料且有效降低室内能耗、节能环保。

using open copper plate curtain wall system, and with the harsh construction
process control limits, ensure perfect building the present temperament.
Respiratory layer and unique design of superior performance, the unique open
copper plate curtain wall system, both to protect the internal material and
achieve energy conservation and environmental protection.
铜板幕墙构造
Copper plate curtain wall structure

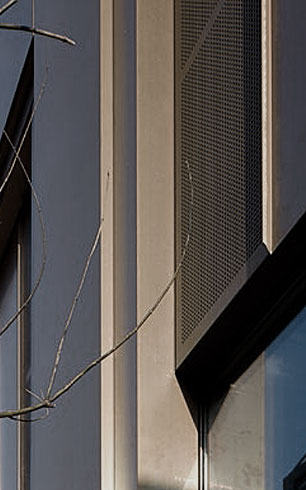

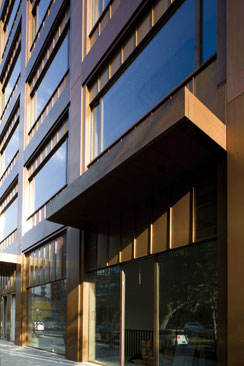

建筑局部细节
Architectural details

NO3

Space 空 间

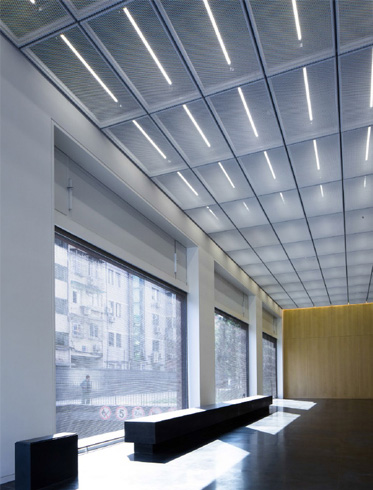

Public space 公共空间

公共空间

Public space

×
首层地面采用了同室外景观铺地相同的黑色石材,实现了室内到室外的自然过渡,同时从材料上使厚重的平台和被置于平台上外形优雅的建筑产生鲜明的对比。

The first layer of the ground with theoutdoor landscape paving the same blackstone, to achieve a natural transitionfrom indoor to outdoor, also make heavyplatform and was placed on the platformele-gant shape of the building have thesharp contrast from the material.

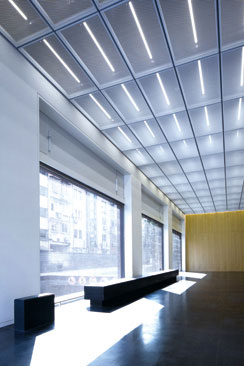

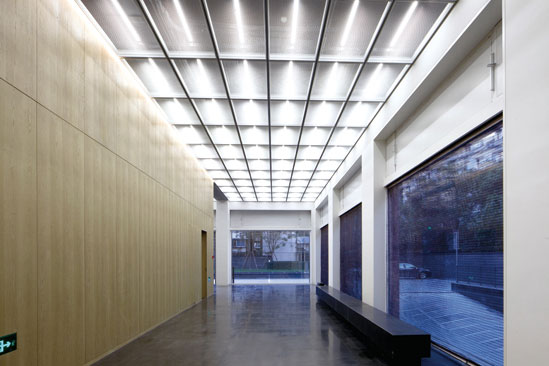

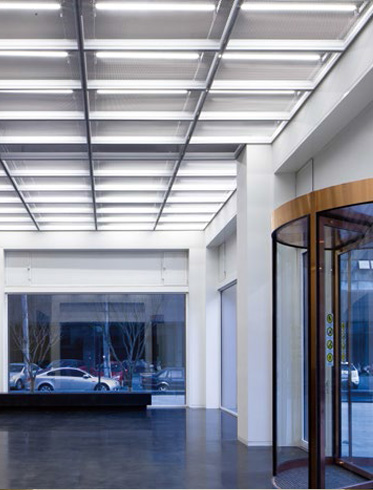

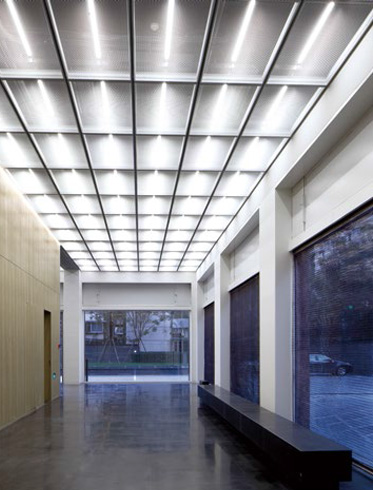

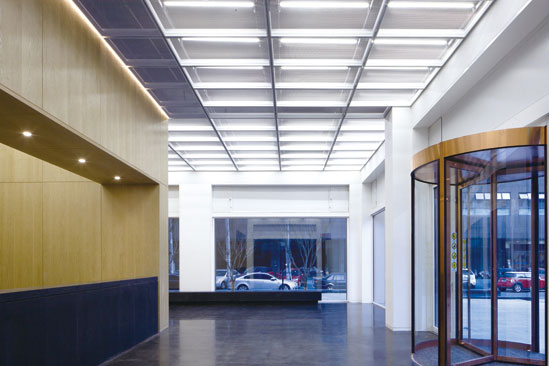

  • 大堂内景
    The Lobby Interior
  • 大堂内景
    The Lobby Interior
  • 大堂内景
    The Lobby Interior
  • 大堂内景
    The Lobby Interior

Office 办公空间

× 下一页

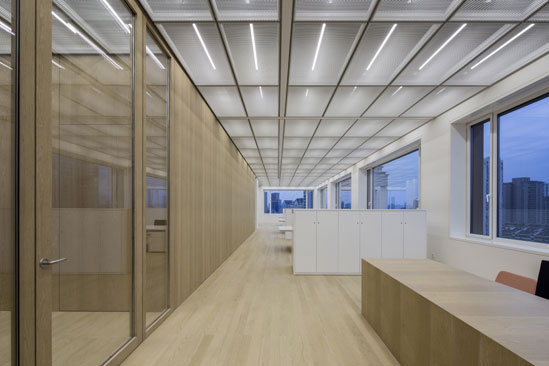

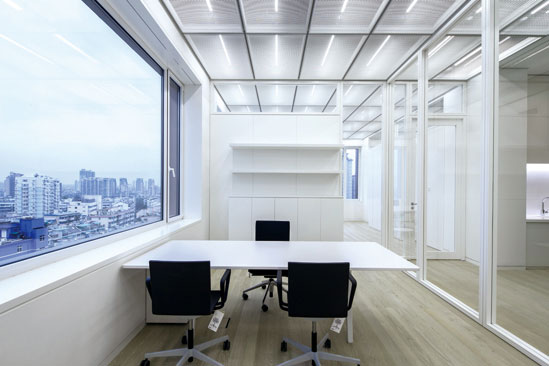

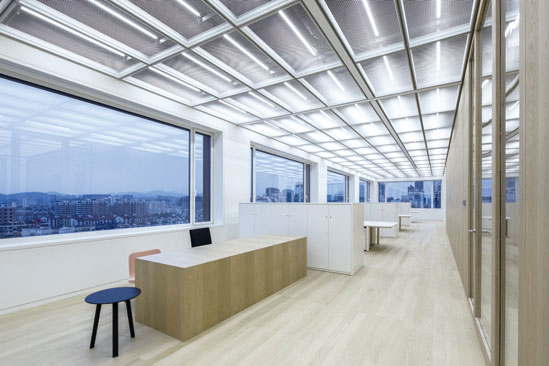

办公空间

Office space

无柱式整体空间
The overall space no pillar
只有让空间、形态回到人基本需求的出发点,才能使空间
使用者拥有真正的自由。壹向大楼的办公空间,是无任何
结构柱的整体空间,把更多余地和可能性留给了使用者。

Only let the starting point of space, form back to the human basic needs,can make the space users have real freedom. One to the building of officespace, is the whole space without any structural column, the more room andpossibility for users.
空间的自由模数
Free ad space
在整体空间中,充分考虑了使用者的需要,既可整体
使用,也预留了按照外墙柱距模数(东西6米,南北
5.4 米)自由分隔的可能。

In the whole space, give full consideration to the needs of users, which can beused, also set aside in accordance with the exterior column modulus (6 meterseast-west, 5.4 meters north-south) free from possible.

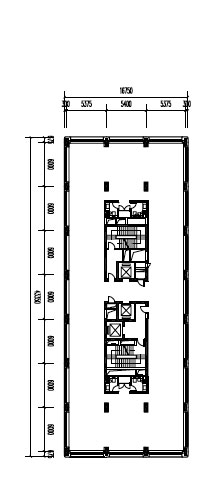

标准层平面
Typical floor plan
标准层未布置状态
Standard layer is not arranged state

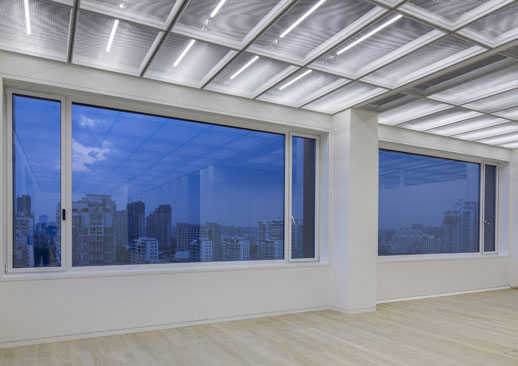

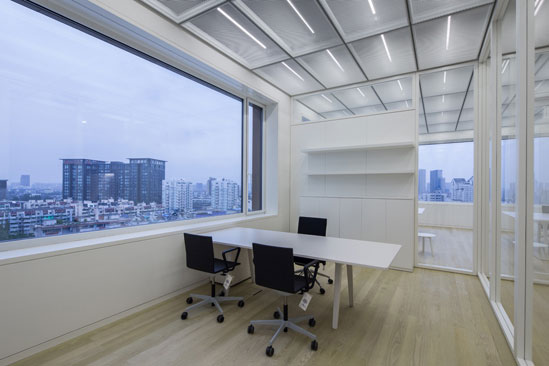

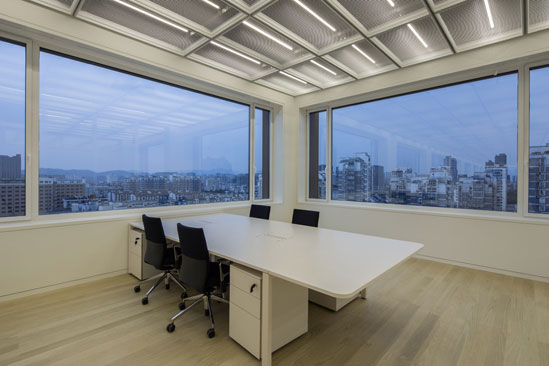

办公空间

Office space

卓越的空间尺度
The spatial scale of excellence
卓越的空间尺度给予使用者最大的舒适感,壹向大楼标准层层高达4.59米,净高3.35 米,并配合超大幅窗设计,形成了“让阳
光来填满空间”的美好感受。室内流畅的交流与窗外都市的繁华,交汇成至臻的现代办公体验。

The spatial scale of excellence gives the user maximum comfort, one to thebuilding standard layers of 4.59 meters
high, 3.59 meters in height, and with the large picture window design, form a "good feeling let the sun to fill the
space". Communication with outside urban indoor smooth downtown, where modern office to experience.
剖面(空间尺度分析)
Profile (spatial scale analysis)

NO4

Detail 细 节

Ceiling 天花吊顶

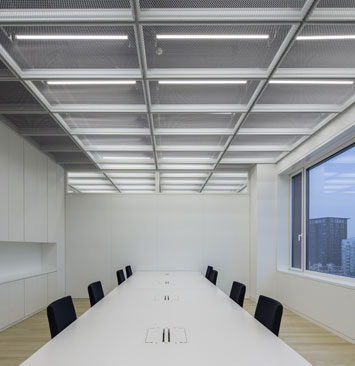

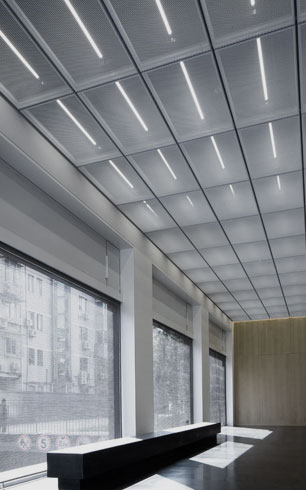

天花吊顶

Ceiling

×
德国OWA 拉网天花吊顶,体现超前的装饰理念。所有管线、
空调及新风风口、灯具、消防喷淋及报警、网络无线布点等
均隐于吊顶上方,办公空间视觉上纯净极简。

Germany OWA net suspended ceiling, reflect advanced
decoration ideas. All pipelines, air conditioning and air
outlet, lighting, fire sprinkler and alarm, wireless network sites are hidden in the ceiling above, office space visually clean minimalist.

Window curtains 窗 帘

世界建筑大师担纲设计

Window curtains

×
由全球窗帘顶级供应商瑞士格宁斯提供的欧洲全进口隐藏式导轨波形帘系统。其特制工艺使窗帘具有充满韵律的波形效果,外观内敛典雅,使用平滑流畅而静音,极具现代感。

Provided by the global top supplier Geningsi curtain Switzerland imported European hidden guide wave curtain system. The special technology to make the curtain has a waveform effect full of rhythm, introverted elegant appearance, the use of smooth and quiet, very modern.

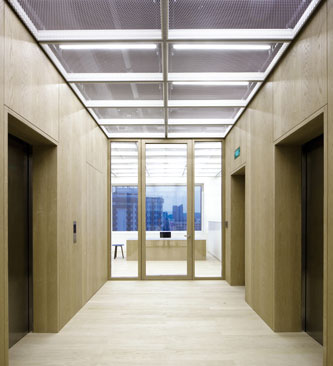

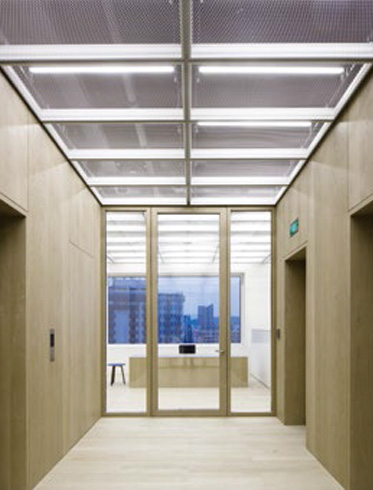

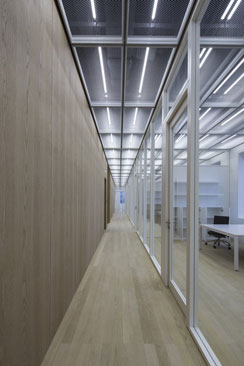

The public part of wood finishes 公共部位木饰面

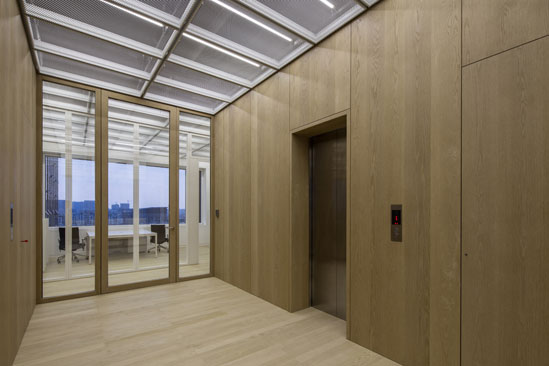

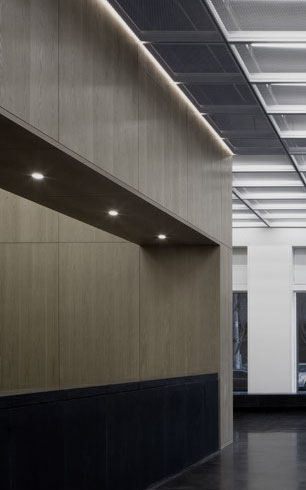

公共部位木饰面

The public part of wood finishes

×
大堂及电梯厅等墙面采用北美白橡木饰面,色泽淡雅,表面无任何油漆,纯天然健康环保。

Hall and elevator hall wall with white oak veneer, elegant color, the surface without any paint, pure natural healthy environmental protection.

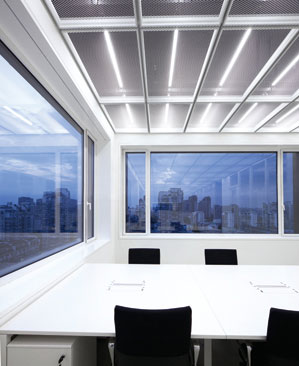

Doors and windows system 门窗系统

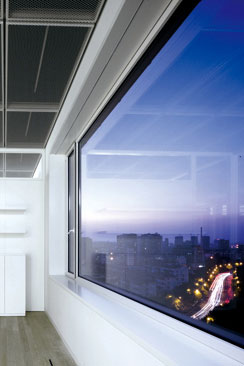

门窗系统

Doors and windows system

×
采用世界五百强企业德国海德鲁70 系列断桥隔热隐框系统窗,5 米(宽)*2.3 米(高),极佳空间视野和采光。独特定制型双层LOW-E 超白玻璃,隔热、隔音性能卓越,内开内倒双模式窗扇,具有无与伦比的通风性。

The world five hundred strong enterprises in Germany's 70 series of insulating hidden frame window, 5 m (*2.3 m wide) (high) space, excellent vision and lighting. The unique custom type double-layer LOW-E ultra white glass, heat insulation, sound insulation performance, opened within the inverted double mode window, ventilation is incomparable with the.

The revolving door 旋转门

旋转门

The revolving door

×
由具140 年历史的旋转门生产厂家荷兰宝盾为大楼量身订制的紫铜旋转门,其专业的技术、精湛的工艺、独特的设计将建筑的美与最高程度的灵活性完美结合。

The revolving door manufacturers with 140 year history of the Holland shield for copper revolving door building tailored, professional technology, superb technology, a unique design combines beauty with the highest degree of building flexibility perfect.

Elevator 电 梯

电梯

Elevator

×
客梯2 部,货梯1 部。150 年历史的美国奥的斯品牌sky 系列电梯,永磁无齿轮、超静音设计、轿厢专用空调,带来舒适的享受,非凡的乘梯体验。能源再生变频驱动器节省更多的能耗。

2 passenger elevators, goods ladder 1. The 150 years history of the United States of America Otis brand sky series elevator, permanent magnet gearless, ultra quiet design, car air conditioner, enjoy the comfort of riding,extraordinary experience. Energy regeneration frequency drive to save more energy consumption.

×

杭州诗典级写字楼

Hangzhou poetic canon class office building

世界顶级建筑大师作品
历经5 载春秋精工淬炼而成
她伫立于城市的繁华中
内敛、自然、沉静
如诗如典
向自然与都市致建筑的生命之礼

The world's top architectural masterpieces
After 5 years of the spring and autumn Seiko quenching and
She stands in the city's prosperity
Introverted, quiet, natural
The poem such as code
To the natural and urban building gift of life

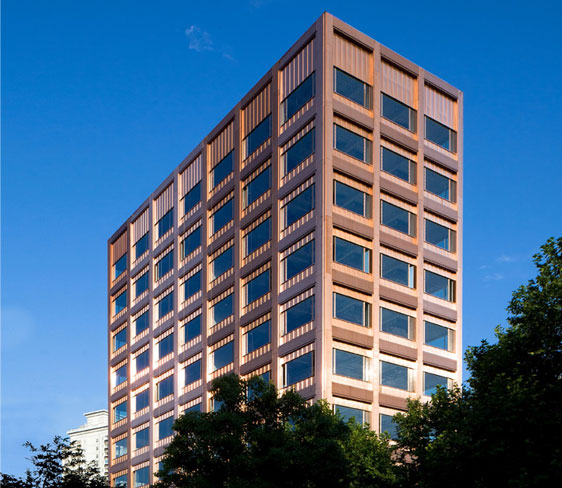

about
×

地理位置

The geographical position

壹向大楼座落于杭州的城市中心,莫干山路266 号,文一路口北侧。建筑直面城市南北主干道莫干山路,距德胜快速路、上塘高架入口仅5分钟车程。可由城市腹地快速接驳萧山国际机场、沪杭甬高速、杭宁高速。

Next to the building is located in Hangzhou city center, 266 Moganshan Road, a road on the north side of. The building facing the city north-south trunk road Moganshan Road, Desheng expressway, from Shangtang viaduct entrance only 5 minutes. The city hinterland rapid access Xiaoshan International Airport, Shanghai Hangzhou Ningbo high-speed.
map
×

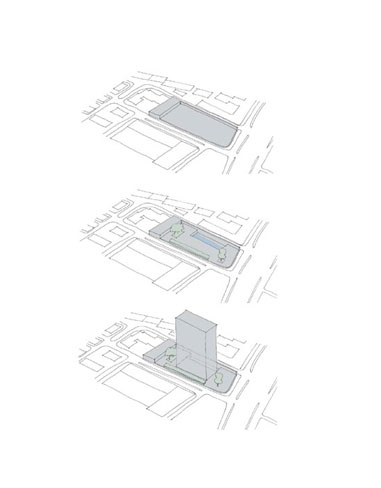

建筑理念

Architectural concept

理想的建筑首先应该忠于人们内心的需要而建造,它经得起时间的考验,能与这个城市、社会与自然和谐共生。理想的办公空间,需要能够打开人们的思维和交流。

壹向大楼,就是这一理念在现实中的实践,是基于理想主义的纯写字楼。大楼占地3177 平方米,地上10 层,建筑面积7084 平方米,地下3 层,建筑面积5895 平方米。

是世界顶级建筑大师David Chipperfield 在杭州的又一作品。


The building covers an area of 3177 square meters, construction area of 7084square meters on the ground, underground construction area of 5895 squaremeters.

Ideal building first should be loyal to the people heart and the construction,it can stand the test of time, and the city, society and nature coexist in harmony. The ideal office space, need to be able to open people's thinking and communication. One to the building, is the idea of practice in reality, is pure office building based on idealism. Another works in Hangzhou the world's top architect David Chipperfield.
idea
×
  • 硬件指标

    大堂面积273 平方米  大堂净高 4.65 米

    标准层面积760 平方米  标准层层高 4.59 米  标准层净高 3.35 米

    楼板承重标准层200 ㎏ / ㎡,局部区域250 ㎏ / ㎡

    车位-2 层31 个车位;-3 层33 车位

  • 功能分配及配套

    地上一层办公大堂、商业、消控室      地上二至十层     办公

    地下一层自行车库、物业服务中心、弱电机房  地下二层/ 地下三层  汽车库、配电房、水泵房

  • 动线

    交通通达性设一个车行出入口、一个消防出入口;车行出入口接驳双荡弄,临近莫干山路主干道

    电梯2 部天津OTIS SKY 电梯,速度1.75 m/s,载重1000Kg,轿厢尺寸1500(宽)*1350(深)*2400(高)

    消防/ 载货电梯1 部天津OTIS SKY 电梯,速度1.75 m/s,载重1000Kg,轿厢尺寸1600(宽)*1400(深)*2400(高)

  • 空调及新风系统

    空调日本大金VRV Ⅲ户式中央空调

    新风新风系统(带显热交换器)

  • 智能系统

    网络通信光纤宽带接入;有线电视接入;大堂无线网络(WLAN)覆盖;无线移动信号全覆盖

    通信服务商中国电信、中国移动、中国联通、杭州华数

    供电系统提供三相10KV 双路供电;电容量约100W/ ㎡(套内建筑面积,空调主机除外)

  • 交付标准

    外墙铜板幕墙、德国海德鲁系统门窗(断桥隔热型材、双层中空钢化LOW-E 玻璃)

    户内部位地面   细石砼地面      墙面   乳胶漆

    吊顶   德国OWA 金属拉网吊顶系统,部分区域吊顶预留   入户门  钢木复合门

    照明   LED 灯管照明     窗帘   欧洲进口格宁思窗帘系统

    卫生间  墙面为水泥砂粉刷、地面为水泥砂地坪、顶棚为腻子批白,预留给排水接口

    公共部位大堂   墙面为橡木饰面板,地面为哑光水洗蒙古黑石材,吊顶采用德国OWA 金属拉网吊顶系统

    电梯厅  墙面为橡木饰面板,地面为实木复合地板,吊顶采用德国OWA 金属拉网吊顶系统

    客梯轿厢 墙面和吊顶为橡木饰面板,地面为哑光水洗蒙古黑石材

  • 硬件指标

    建筑面积商业面积为624 平方米,其中一层为257 平方米,二层为367 平方米

    面宽4.56 米

    楼板承重一层350 ㎏ / ㎡,二层200 ㎏ / ㎡,局部250 ㎏ / ㎡

    层高一层 5.78m,二层4.59m

  • 设施设备

    电梯1 部天津OTIS GeN2 无机房电梯,速度1 m/s,载重1000kg

    空调日本大金VRV Ⅲ户式中央空调

    新风新风系统(带显热交换器)

  • 智能系统

    网络通信光纤宽带接入;有线电视接入;大堂无线网络(WLAN)覆盖;无线移动信号全覆盖

    通信服务商 中国电信、中国移动、中国联通、杭州华数

    供电系统提供三相10KV 双路供电;电容量约100W/ ㎡(套内建筑面积,空调主机除外)

  • 交付标准

    外墙铜板幕墙、德国海德鲁系统门窗(断桥隔热型材、双层中空钢化LOW-E 玻璃)

    户内部位地面   细石砼地面

    墙面   水泥砂粉刷,外墙内侧墙面为乳胶漆

    顶棚   腻子批白

    卫生间  墙面为水泥砂粉刷、地面为水泥砂地坪、顶棚为腻子批白,预留给排水接口

    电梯轿厢 喷涂钢板(装修空间预留)

parameter
×

开发团队

development team

开 发 商: 杭州梵石保元房地产开发有限公司
建筑设计: 英国 戴卫. 奇普菲尔德(David chipperfield)建筑师事务所
室内设计: 英国 戴卫. 奇普菲尔德(David chipperfield)建筑师事务所
景观设计: 德国 莱维墨西尼(levin-monsigny)景观设计事务所
灯光设计: 美国h.e.banks+associates 灯光设计事务所


Developer: Hangzhou Fan Shi Baoyuan Real Estate Development Co., Ltd.
Architectural design: The United Kingdom David CHIPP field Architects
Interior design: British David CHIPP field Architects
Landscape design: Germany Levi Mo Sidney landscape design firm
Lighting design: The United States h.e.banks+associates lighting design firm
team
×

图鉴

Illustrations

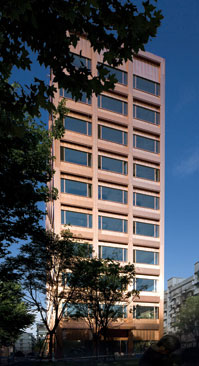

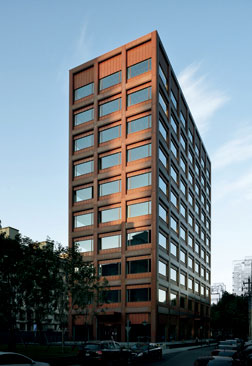

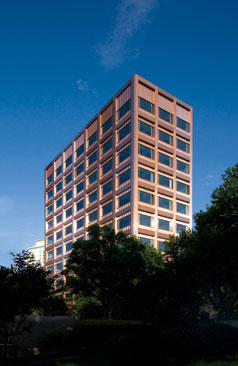

外立面
